Industrial Flow Measurement Solutions
The Air Monitor flow measurement system is the most accurate low velocity, large duct capable flow meter in the world. Air Monitor provides engineered industrial flow measurement solutions by customizing systems and materials for the needs of the project.
Check out Air Monitor’s Best in Class Propositions:
- – Best accuracy in the industry in low flow, large duct applications.
- – AMC transmitters can measure lowest DP in the industry.
- – As little as zero straight run required.
- – Non-uniform flow profile problem solved – flow conditioners plus cross duct, multiple measurement points = excellent large duct measurement accuracy.
- – Dirty applications are no problem with AUTO-purge III feature.
- – Excellent stability, repeatability and accuracy with Auto Zero feature.
- – Available Field Services
-

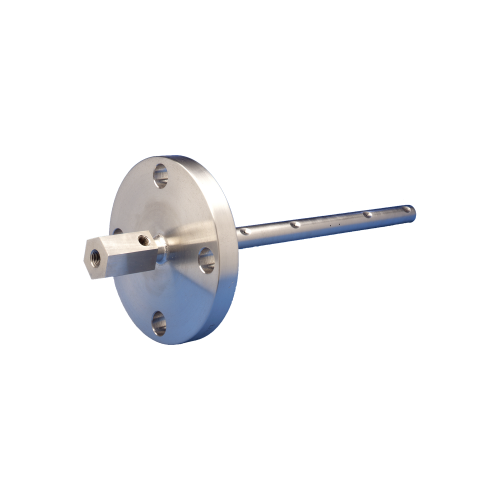

VOLU-probe/SM
Insertion Airflow Measuring Probes
Airflow traverse probe ideal for clean air applications.
2,000 to 12,000 FPM
- Accuracy: 2% of Actual Flow
- Temperature: ≤900°F
- Stainless steel
- Threaded or flanged mount
- Easy installation/removal for maintenance
-
STACK-probe
Insertion Airflow Measuring Probes
Airflow traverse probe for stack flow monitoring typical for Continuous Emissions Monitoring (CEM) systems.
400 to 10,000 FPM
- Accuracy withing 40CFR75 specs
- Temperature: ≤900°F
- Stainless steel, Hastelloy, Inconel
- 4” or 6” 150lb Flange connections
- Cantilevered construction / installation
-
VELTRON DPT-Plus
Multivariable Transmitter
Measures differential pressure and process temperature providing output of calculated mass flow.
Flow, Temperature, or Differential Pressure
- Accuracy: 0.1%
- URL down to 0.05” w.c.
- NEMA 4X
- Class I Div 1, Class II Div 1
- 24VAC, 24VDC
-
VELTRON II
Transmitter
Measures differential pressure providing output of differential pressure or volumetric flow.
Flow or Differential Pressure
- Accuracy: 0.1%
- URL down to 0.05” w.c.
- NEMA 1, optional NEMA 4 and 4X
- 24VAC, 24VDC
- Turndown: 100:1
-
VOLU-probe/FI-SS
Insertion Airflow Measuring Probes
Pitot fan inlet airflow traverse probes.
400 to 10,000 FPM
- Accuracy: 2% of Actual Flow
- Temperature: ≤900°F
- Stainless steel
- Double or Single Wide, Vane Axial, Plug Fan
- Easy installation/removal for maintenance
